Between 1957 and 1970 Cheoy Lee produced approximatley 133 folkboats originaly sold as the the Offshore 25, better known as the Frisco Flyer.

There were three versions of this small blue-water boat.
91 in all wood and 42 in Fiberglass with wood. There were 55 Type I's and II's and 78 of the Type III's. The Type I (aka the Pacific Clipper) was an all wood boat, had a mast that was stepped through the deck, a traditional folkboat fractional rig and a smaller cabin. The Type II's had a larger teak trunk cabin and a masthead rig. The Type III's had a larger teak dog-house cabin, some "standing" headroom and a masthead rig stepped on deck. The earlier Type III's were solid teak built onto a fiberglass hull and the later Type III’s (1966-1970) were made entirely out of fiberglass with teak paneling.

This boat, Yard # 1507 is one of approximatley only 30 Type III's left. It was out of the water for the previous 16 years when I got it and then about another 5 more while I rebuilt it. It was an empty, cracked hull when given to me and needed a complete restoration/refit.
It took about five years of long nights and weekends of working outside under a tarp, in the garage or in the boat during cold winter nights, wet rainy afternoons and everything in between. The occasionally eager assistant on the project was my four (now ten) year old daughter who can have this boat as soon as I convince her mother to get another one. This blog is the record of all the work that "we" have done to the boat as well as some other somewhat related events with friends and family. Eventually, this will be put together in a book which will stay with the boat.


She still has plenty more to go but for now, Jackaroe has been in the water for a couple years now and thats all that matters...

To see past projects, use the links below.



Questions and comments to Matthewearlgarthwait@gmail.com





Wednesday, October 13, 2010

Field trip to Maine....

Back in April a couple of us went to a boat yard in Maine where we were hoping to pick up a few things for the fleet. The word was that there was a yard selling bits and pieces off of their older inventory and it was a kind of self serve situation. Go in, rummage around, grab what you want and agree on a price. We got there and there was some cool, old bronze bits and plenty of useful things. I was tempted to pick up these three inch bronze cowls because while I have the old Nicro cowls, I really want a nice pair of bronze ones. These bronze though were abut ten inches high and looked like a corn a copia.


In the end, I picked up a small portlight, a small bronze (yard made) snubbing winch, a small Merriman wich and two small bronze Merriman winch holders and a Merriman winch to fit ( I have one already that came with the boat).
My Box.......

What was cooler than the stuff on the inside was the stuff on the outside.



There was a lot of nice boats but the one that caught my eye was a small pilot sloop that someone was just finishing after six years of work.



Inside and out, this thing seems to have been built strong.




Beautiful boat...

Saturday, October 9, 2010

New(er) Countertops.

While I had made a stainless counter for the sink....I liked the idea of boat sides being wood... I made these with some scrap mahogany...




Tuesday, October 5, 2010







Sunday, October 3, 2010

Gold cove stripe....

This weekend, it was sunny and cool and I painted the cove stripe/CL scroll gold. I used One shot sign painters gold paint. It took a really long time because I didn't tape it off (because it was recessed/routed into the hull) but it really needed a steady hand to make it look smooth/uniform. All in all, it looks great and I'm really glad to see the outside of this boat come to a finish.



( The new Awl Grip looks pretty good too.)

Monday, September 27, 2010

Prepping Hull for Awlgrip....










Saturday, September 25, 2010

Reinforcing/tabbing bulkheads....

Back in May, I sanded, vacuumed, washed with solvent, then laid down some mat and cloth fiberglass. A couple layers on all the corners under the seating and cabinets. I wanted to paint these areas but thought it would be a good idea to reinforce them first.





After all the glass was in, sanded, vacuumed, wiped down with solvent, and finally given a couple of coats of Interlux one part poly. Now the hull will be sealed from water intrusion, inside and out!



Removing trim/molding around cabinhouse....


While working on fixing some leaks in the cabin house roof, I found that some of the old fiberglass either didnt cover all the way down to the trim piece and was letting water in or it used to reach all the way but has since cracked and water has crept in. I decided the best thing to do was to take the molding off to make sure the seal around the cabin house roof were 100% all the way around. The pieces didn't come off easily, and I wish I saved those corner pieces!

Sunday, August 15, 2010

Summer 2010 update....

  1. The boat is coming along and should get painted in the next week or so.
  2. Hope to put her in this Fall.
  3. Still need a motor.
  4. Will put up pictures ASAP

Monday, May 10, 2010

Flyer III photo and drawing....

I was able to get Flyer drawings from Cheoy Lee last year but I was only able to get a Type I drawing. Came across this Type III drawing and a great picture...


Saturday, May 8, 2010

Sheerclamp nightmare….

Sheerclamp nightmare….
I was checking my handywork on the starboard side sheerclamp and while the big piece of oak that I had put in last year was bomb proof, I did find a little more rot on both sides. I haven’t really decided how to handle this yet. Part of me wants to clean out all rotten bits from the inside before replacing it with new wood, all from the inside. The other idea I had which could be easier in some ways but more painful in others would be to open up two small holes in the bow and after cleaning out all the rot from the inside, I could slide in new pieces in from the bow openings and epoxy in place. Not quite sure on this one yet. I hate having to go back and do some of this stuff after the rest of the boat has come so far. We’ll see.

Cabin house…

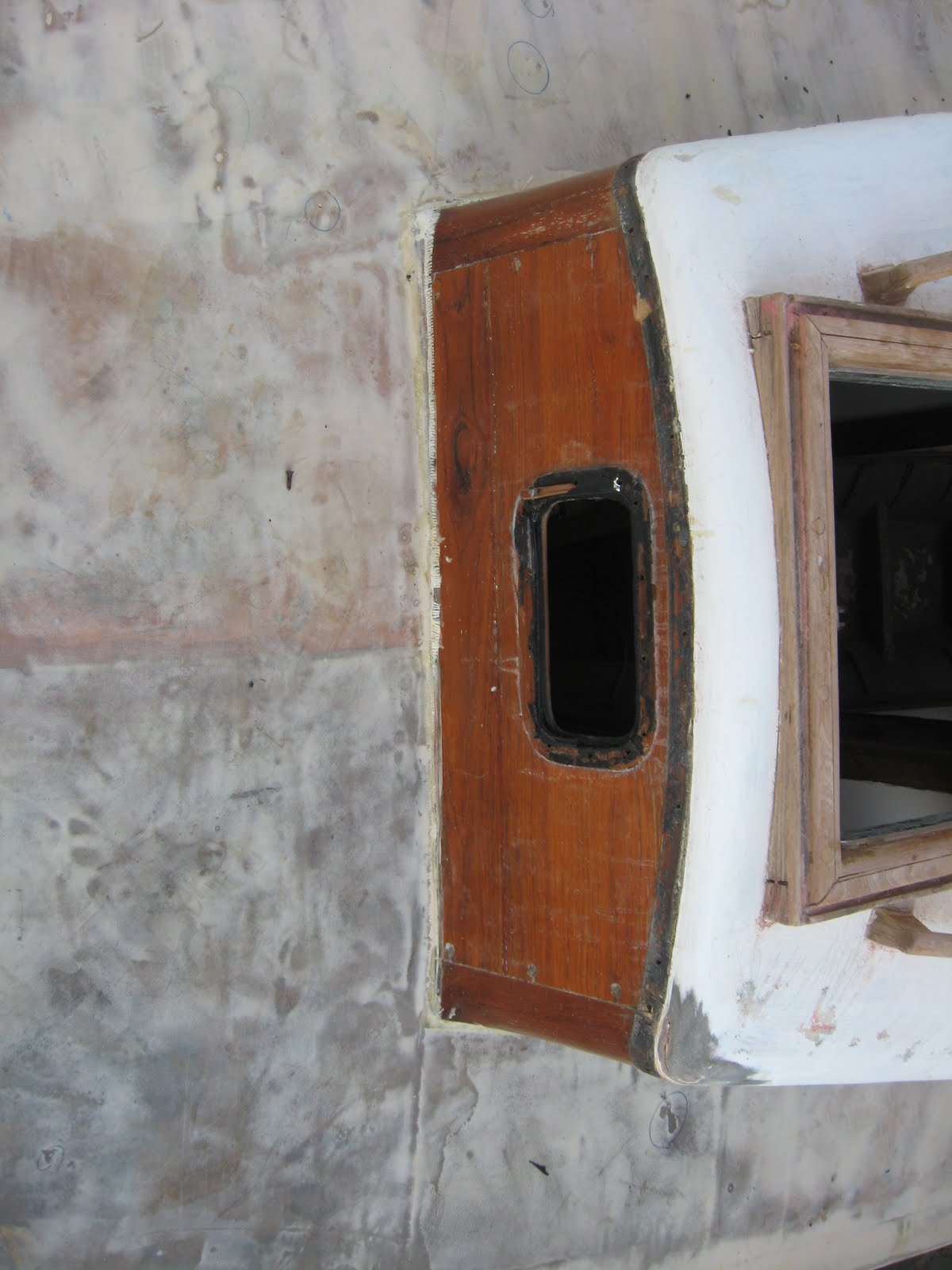

Along the same lines of crack repairs.. I wasn’t satified with the way I had decided to repair the cabin house. I had just planned on fixing any leaks in the roof but after taking of the trim pieces around the edges I wasn’t happy with the way it looked at all and was worried about water eventually working its way into there eventually. I started to think about sanding the whole thing and applying a thin hardwood veneer over it. Cut out the portlight openings, trim top and bottom and epoxy in place. The inside will stay as it is but hopefully with the outside completely covered in a new layer of wood and sealant, that too should be water tight for years to come…..

Green paint….

Green paint….

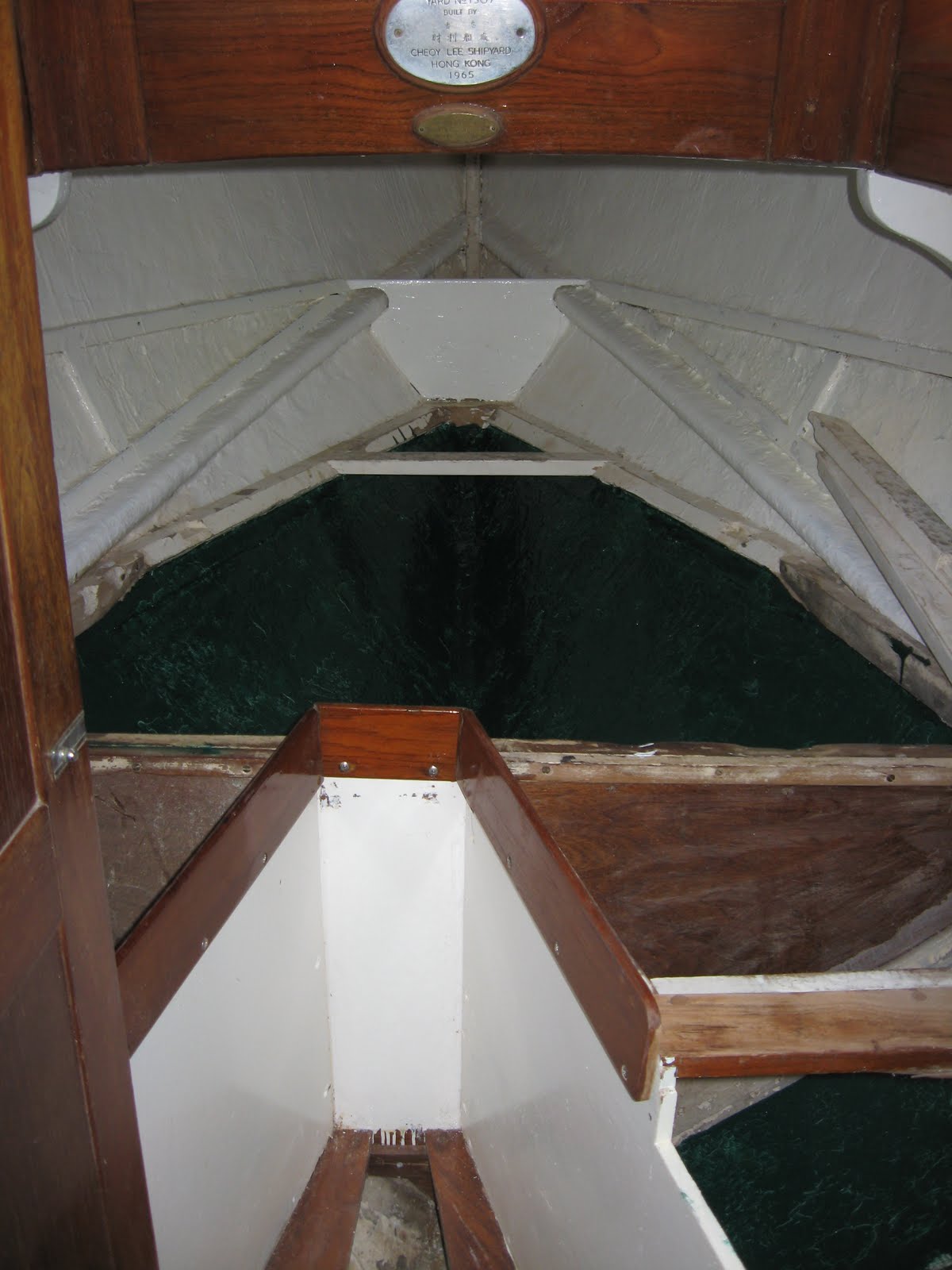

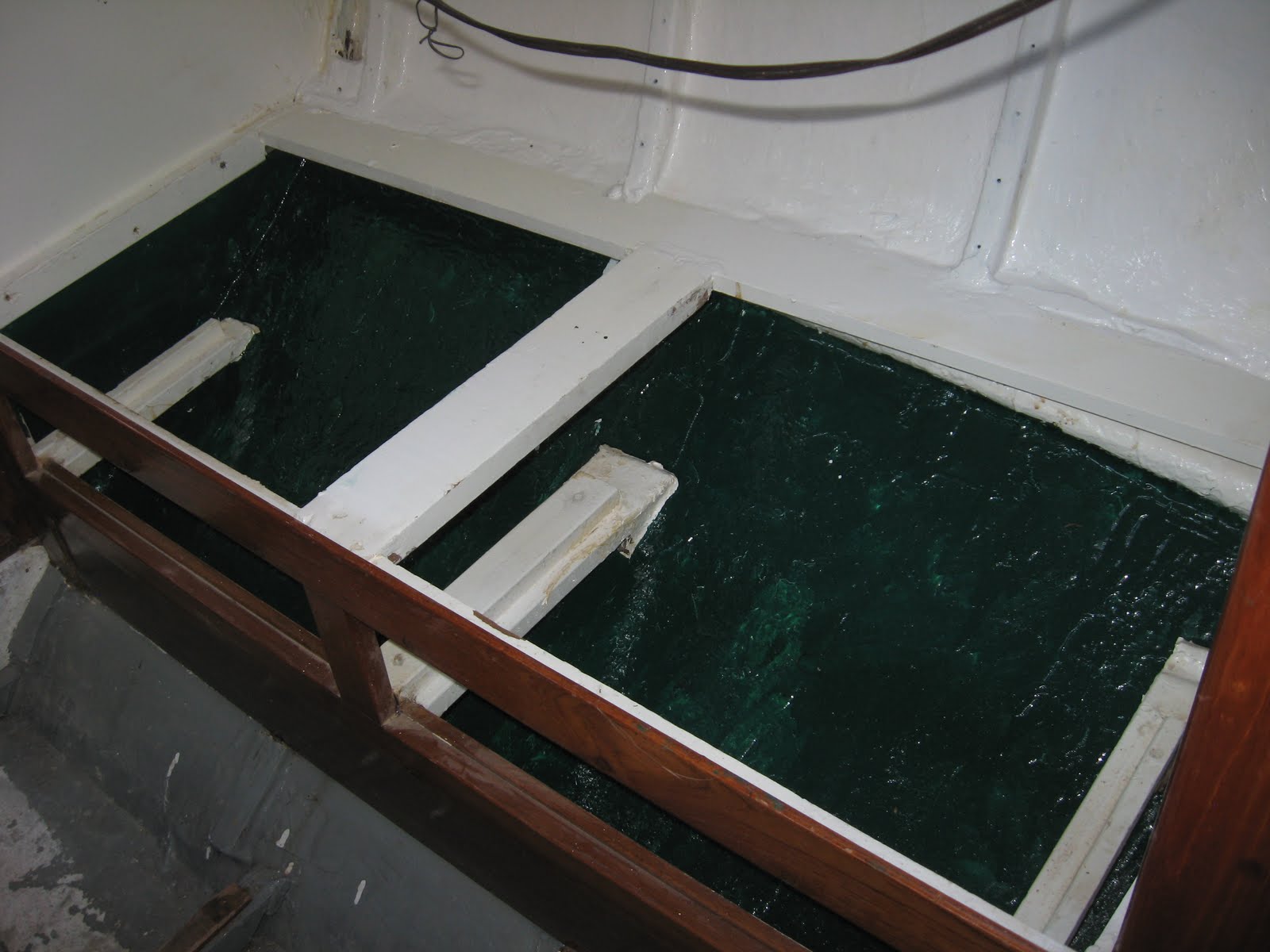

Going back into the boat after a while and looking at the way the dust, dirt and little bits end up in all the little corners and creases under the seats and berths in the cabinhouse. I’m sure looks like this would only get worse once the boat was being used all the time. I wanted to have a different color than the white so I found an old can of one part epoxy paint. It was sea green, a left over from a half hull project my dad had worked on about 6 years ago or so. Opened the can, mixed it with a drill and gave all the lower areas a coat of green which should do a better job of hiding the dirt, grime and water stains etc.

Gouges in hull …

Last year, I had cleaned out any large cracks in the gelcoat by scraping down into the gelcoat but not through into the fiberglass beneath. After that they were filled and I had been fairing them out along with any of the deeper dings and nicks that I found along the way. There were two or three small spots that needed to be cleaned out making sure to leave a nice text book West System 12-1 taper.

After spending a long time getting the hull back close to fair and close to painting, one afternoon I started to second guess the work I had done thinking that while it was pretty good it wasn’t as good as it could be. I started to think about water intrusion and those cracks being deeper than I really liked. Some were only through the gel coat but a lot were really all the way through or close to all the way through.


I grabbed and old style can opener, the one I had used last year (again, sage info from West System) and started to scrape the cracks open again but trying to go all the way through this time. Way too hard. I walked back into the shop (formally known as the garage) and grabbed a Dremel type tool. I put a carbide or diamond tip on it and in less than an hour, I had 200, 10 inch long, ¼ deep gouges…on each side. That seemed to work much better but the boat looked worse than ever.

The weather was good and dry so I didn’t have to fill them right away and I could sneak away to a friend’s for dinner with the girls. Later that evening, when we got back but before reading Maya a bedtime story, I mixed up a big batch of West system and micro balloons and filled them all up.


They sat that way for a few days and last night before the rainstorm, I was able to start sanding the excess off and hopefully tonight I’ll get to the other side and then finish filling them in.



After all this, the boat will look them same as it did a week ago, looking close to fair and close to painting but this time I know that these small cracks will never open up and let in any water. That doesn’t mean others won’t show up but if they do, it should only be a couple. Its funny, if I had a finished sailboat and found my hull looking like this one day, I would probably have a heart attack, but nothing seems to faze me these days with boat projects…hopefully they never will after all of this.
